Model A800P Portable Tiltmeter
Model A800P Portable Tiltmeter

Model A800P Portable Tiltmeter

Highlights:

The Model 800P Portable Tiltmeter is a versatile and accurate hand-held instrument for monitoring structural and foundation movement. Measurements are taken from tilt plates that have been cemented or bolted to any horizontal or vertical surface. Indexing bars on the bottom and sides of the tiltmeter enable you to reposition it accurately on the tilt plate, every time. When continuous monitoring is not required, Model 800P is an excellent choice because only one tiltmeter is needed to make measurements at an unlimited number of points.

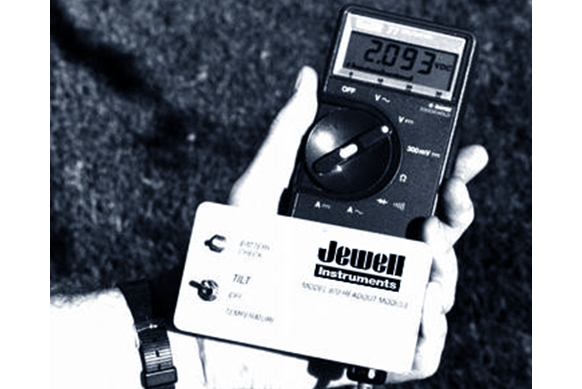

The Portable Tiltmeter System includes one tiltmeter, one power and display unit, and a tough plastic carrying case. Ceramic or Aluminum Tilt plates are purchased separately.

Compare
Categories: , Tags: , , , ,
Additional information
Weight 96 oz
Dimensions 5.6 × 4 × 5 in
Performance Specifications

Performance Specifications

Output ChannelsInclination, Temperature
Resolution0.0001 arc° (0.36 arc second)
Repeatability±0.004° typical
Angular Range±5° from null position
Non-linearity1% of full scale
Filtering2-pole Butterworth low-pass filter for removing noise from vibration or jitter
Environmental-25° to +70° operational
-30° to +100° storage
Sealed for use in damp environments; non-submersible.
MaterialsStainless steel; plastic sensor housing
Downloads

Downloads

Datasheet

Related Products

Model A601-2A/2B High-precision Platform Tiltmeter

Model A601-2A/2B High-precision Platform Tiltmeter

Highlights:

The model A601-2 Platform mount tiltmeter is designed for high precision tilt measurements. Units come with built-in micrometer leveling legs, for easy installation on any horizontal surface. The A601-2 also includes two switchable gains and two low-pass filter settings. Using an absolute gravity-referenced electrolytic sensor, the A601-2 delivers ultra-high sensitivity to <25 nrad with virtually zero long-term drift. Output is a stable ±8 DC voltage (±16 VDC differential). Rugged, reliable, and extremely accurate, the A601-2 is the preferred choice for volcano monitoring, high-precision geotechnical engineering, bridge deflection monitoring, precision metrology, radar platform leveling, and high-accuracy tilt monitoring applications worldwide.

Compare
Model C904 Clinometer Pak 420

Model C904 Clinometer Pak 420

Highlights:

The Clinometer Pak 420 is the packaged version of our Tulip 4-20 mA clinometer. Its rugged aluminum enclosure provides mechanical and environmental protection for indoor or outdoor use. This uniaxial instrument is current loop-powered, so measurements can be made over long cables using an economical 2-wire pair. It also measures temperature using a built-in thermistor. Use it to monitor the angular position of conveyers, booms, ramps, and machinery; perform antenna tilt error corrections; and track the pitch and roll of ships, buoys, ROVs, and towfish.

Compare

Model 802 Deep Water Submersible Tiltmeter Series

Highlights:

The Model 802 DeepWater Series is the fully submersible cousin of our Model 801 Tuff Tilt Series. Performance features are the same, but the DeepWater housing is machined from a solid piece of 316 stainless steel and incorporates a high-pressure neoprene connector. The pressure rating is 250 bars (2500 meters depth). Higher-pressure versions may be special ordered. Temperature rating is governed by the neoprene connector. Wider temperature range is available with other connector types. Units are available in a variety of configurations including single axis (uniaxial), or dual-axis (biaxial), analog, digital, or 4-20mA outputs.



Compare
Model CSG-3000 Concrete Strain Gauge

Model CSG-3000 Concrete Strain Gauge

Highlights:

Dynamic concrete strain gauges measure axial strain in the concrete under high frequency (dynamic) conditions. Utilizing four active elements of a Wheatstone bridge circuit, this concrete strain gauge compensates for temperature, rejects bending strain (may also be configured to measure bending and reject axial strains), compensates for lead resistance, and provides a sensor that is easily adaptable to most data acquisition systems without requiring additional signal conditioning. Owing to their low profile design, these sensors can be used in concrete pavements, columns, walls, bridge elements or wherever dynamic strains need to be measured. Each sensor is provided with end washers and nuts and is individually calibrated and supplied with fabrication quality-control documentation.

Compare
LILY Self-Leveling Borehole Tiltmeter

LILY Self-Leveling Borehole Tiltmeter

Highlights:

Using a high-precision electrolytic tilt sensor, units deliver resolutions to 5 nano radians; the dynamic range is ±330 µradians. Units also feature a ±10 deg. leveling range for easy installation downhole. Output is RS-232 or RS-422 (RS-485 full-duplex) and includes timestamp and compass bearing. Data can be saved to file externally or to LILY’s on-board flash memory (75,000 sample max) using fill/stop or cyclic memory modes.

Units are fully submersible to 3000 psi. Titanium is also available for +5000 psi applications. The culmination of over 30 years of tilt sensor experience and expertise, the LILY represents the pinnacle in precision sensor engineering.





Compare

Model 711-2 & A716-2

Highlights:

The models A711-2 (floor-mount), and A716-2 (wall-mount) bolt or clamp to any surface, and are well suited for areas with heavy traffic or vibration. Electronic performance is identical to the model A701-2. Floor-mount models are available with a weatherproof NEMA 4X seal (A711-2 4X), or with an RS-232, RS-422, or RS-485 digital output (D711). D711 units also include onboard memory with a storage capacity of up to 22,000 samples. Units include two switchable gains and two low-pass filter settings and are sensitive to <0.1 µrad. Applications include volcano monitoring, high-precision geotechnical engineering, bridge deflection monitoring, precision metrology, radar platform leveling, and high-accuracy tilt monitoring applications where bolt-on installations are required.

Compare
Tulip SC 4-20mA Signal Conditioning Card

Tulip SC 4-20mA Signal Conditioning Card

Highlights:

The Tulip-SC is a precision 4-20mA signal conditioning card for use with all Jewell Instruments miniature tilt sensors. Each TulipSC card operates one single-axis tilt sensor. Tilt output is measured as a 4-20mA output. The Tulip-SC is current loop-powered, so measurements can be made over long cable lengths using an economical 2-wire pair. Units also come with an onboard thermistor for measuring temperature.

Jewell provides factory calibration for all Tulip-SC electronics when ordered with our 84053 and 84064 Ceramic, or Model 755- and 756– miniature tilt sensors.

Compare
Model 83162 Dual-Channel Signal Conditioning Card

Model 83162 Dual-Channel Signal Conditioning Card

Highlights:

The model 83162 is a precision, two-channel signal conditioning card for use with all Jewell miniature tilt sensors. Powerful electronics generate balanced AC sensor excitation for up to two tilt channels (X and Y), then amplify, rectify and filter sensor response to produce a high-level DC output signal. Output is ±8 VDC single-ended (±16 VDC differential).

Units conveniently come with two switchable gain and filter settings (high/low; on/off) for added signal processing flexibility. The 83162 also includes an amplifier for one LM35 temperature sensor and will drive tilt and temperature signals over 1000m cable lengths. All units include calibration when ordered with Jewell Instruments miniature tilt sensors. Use the model 83162 for peak performance from our 755, 756, or ceramic tilt sensor packages.





Compare
Model 801 “Tuff Tilt” Tiltmeter SeriesModel C904 Clinometer Pak 420

Model 801 “Tuff Tilt” Tiltmeter Series

Highlights:

The Model 801 “Tuff Tilt” Tiltmeter series combines high precision and durability in an economical instrument package. Using an absolute gravity referenced electrolytic sensor, the 801 series delivers superior measurement accuracy with virtually no long-term drift. Units are available in a variety of configurations including single axis (uniaxial), or dual axis (biaxial), analog, digital, or 4-20mA outputs.

All units are rated IP65 waterproof for advanced protection from the elements.





Compare
Model 875 Mini Tuff Tilt

Model 875 Mini Tuff Tilt

Highlights:

The model 875 Mini “Tuff Tilt” Tiltmeter combines high precision and durability in a miniaturized and economical instrument package. Using MEMS technology, the 875 delivers superior measurement accuracy with virtually no long-term drift and a resolution of 0.05°. Output options include 0.5-4.5Vdc, 4-20mA and digital RS-485. All units are rated IP67 waterproof for advanced protection from the elements. Use the 875 Mini “Tuff Tilt” for structural monitoring, angle measurement, and control, platform leveling, testing and research, OEM, and more.

RoHs

Compare
Model 781 Benchtop Signal Conditioner

Model 781 Benchtop Signal Conditioner

Highlights:

The model 781 is a precision, two-channel bench-top signal conditioner for use with all Jewell miniature tilt sensors. Powerful electronics generate balanced AC sensor excitation for up to two tilt channels (X and Y), then amplify, rectify and filter sensor response to produce a high-level DC output signal. Output is ±8 VDC single-ended (±16 VDC differential).

Units conveniently come with two switchable gain and filter settings (high/low; on/off) for added signal processing flexibility. The 781 also includes an amplifier for one LM35 temperature sensor and will drive tilt and temperature signals over 1000m cable lengths. All units include calibration when ordered with Jewell Instruments miniature tilt sensors. Rugged and reliable, the 781 is an ideal choice for any laboratory application.

Compare
Model MD908 ‘IRIS’ Tilt Switch

Model MD908 ‘IRIS’ Tilt Switch

Highlights:

The IRIS Tilt Switch and Controller is a powerful tilt controller device that combines a digital, dual-axis clinometer and advanced firmware features in one compact unit. This remarkable instrument enables you to measure and respond to rotational movements in any direction concerning the unchanging gravity vector. Units ship standard with a 24-inch hook-up cable. IRIS is an ideal choice for OEM applications, where it can be used to maintain platform levelness, avoid tip-over conditions, prevent out-of-range movement, and perform other control functions.



Compare
