| Weight | 176 oz |
|---|---|
| Dimensions | 4.7 × 3.14 × 2.4 in |
| Applications | • Structural Monitoring |
Model 802 Deep Water Submersible Tiltmeter Series
Highlights:
Compare
The Model 802 DeepWater Series is the fully submersible cousin of our Model 801 Tuff Tilt Series. Performance features are the same, but the DeepWater housing is machined from a solid piece of 316 stainless steel and incorporates a high-pressure neoprene connector. The pressure rating is 250 bars (2500 meters depth). Higher-pressure versions may be special ordered. Temperature rating is governed by the neoprene connector. Wider temperature range is available with other connector types. Units are available in a variety of configurations including single axis (uniaxial), or dual-axis (biaxial), analog, digital, or 4-20mA outputs.
Additional information
A802: ±5V
A802: ±5V
Performance Specifications
| High Gain | Standard | Wide Angle | |
| Angular Range (°) | ±0.5 | ±3.0 | ±50 |
| Resolution (°) | <0.0001 | 0.0006 | 0.01 |
| Repeatability (°) | <0.0002 | 0.001 | 0.02 |
| Non-linearity (%) | 1 | <2 | ½ span: 1 Full span: 2 |
| Scale Factor (°/V) | 0.1 | 0.6 | 10 |
| Time Constant | 1.75 sec (2-pole Butterworth low-pass filter) | 0.15 sec | |
| Kz Temperature Coefficient (°/C) | ±0.0002 | ||
| Ks Temperature Coefficient (%/°C) | <0.02 | ||
| Output | ±5VDC (single ended) ±10VDC (differential) |
||
| Channels | Tilt, Temperature | ||
| Output Impedance (Ω) | 270 | ||
| Temperature Output | 0.1°C/mV typical (single ended; 0°C = 0mV) |
||
| Power | 8-18 VDC @ 8mA, 250 mV ripple max, reverse polarity protected | ||
| Environmental | -4 to +60° C operation -30 to +100° C storage. IP68 |
||
| Materials | 316SS (6AL-4V Titanium also available) |
||
| Cable | 6-conductors, two-types available: 1) Neoprene, 20 AWG, no shield 2) PVC jacketed, polypropylene-insulation, 24 AWG, shielded. Order cable separately. |
||
C802: 4-20mA
C802: 4-20mA
Performance Specifications
| High Gain | Standard | Wide Angle | |
| Angular Range (°) | ±0.5 | ±3.0 | ±50 |
| Resolution (°) | <0.0001 | 0.0006 | 0.01 |
| Repeatability (°) | <0.0002 | 0.001 | 0.02 |
| Non-linearity (%) | 1 | 2 | ½ span: 1 Full span: 2 |
| Scale Factor (°/mA) | 0.625 | 0.375 | 6.25 |
| Time Constant | 0.15 sec | ||
| Kz Temperature Coefficient (°/C) | ±0.0002 | ±0.002 | |
| Ks Temperature Coefficient (%/°C) | <0.04 | <0.1 | |
| Output | 4-20mA Two-wire current loop (per axis) | ||
| Channels | Tilt, Temperature | ||
| Output Impedance (Ω) | 270 | ||
| Temperature Output | Temperature is measured with a 2500 Ohm thermistor, -50 to 150°C range | ||
| Power | (0.02 Ampere x R + 10 VDC) < Vs < 29 VDC | ||
| Environmental | -4 to +60°C operation -40 to +85°C storage IP68 Submersible to 200 meters (656.2 ft) |
||
| Materials | 316SS (6AL-4V Titanium also available) |
||
| Cable | 6-conductors, Neoprene, 20 AWG, no shield | ||
D802: Digital
D802: Digital
Performance Specifications
| High Gain | Standard | Wide Angle | |
| Angular Range (°) | ±0.5 | ±5.0 | ±50 |
| Resolution (°) | <0.0001 | 0.002 | 0.02 |
| Repeatability (°) | 0.0003 | 0.002 | 0.02 |
| Non-linearity (%) | 0.1 | 0.1 | 0.1 |
| Time Constant | 0.15 sec | ||
| Kz Temperature Coefficient (°/C) | ±0.001 | ±0.01 | |
| Baud Rate | 9600 (default), 19200, 28800, 57600, 115200, 230400 | ||
| Output | RS-232, RS-485 | ||
| Output Format | NMEA XDR, Trimble TCM, Ashtec compatible, Simple (default: X, Y, Temp., S/N) | ||
| Channels | X-tilt, Y-tilt, Temperature | ||
| Power | 7-25 VDC @ 27mA, 250 mV peak to peak ripple max, reverse polarity protected | ||
| Environmental | -4 to +60° C operation; -30 to +100° C storage. 3500 psi (~250 bars) |
||
| Materials | 316SS | ||
| Cable | 6-pin neoprene, wet-mateable | ||
Related Products

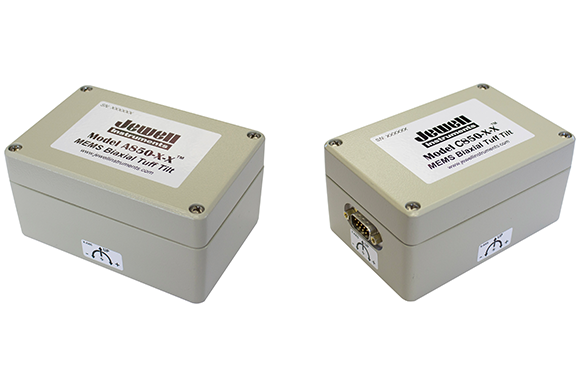

Model 850 MEMS Tuff Tilt Series
