Modutec 1000 Series Digital Panel Meters
Modutec 1000 Series Digital Panel Meters

Modutec 1000 Series Digital Panel Meters

Highlights:

The Modutec 1000 takes the guesswork out of reading a small, low-cost, digital panel meter. These meters have an over-range indication of the rated value and auto-zero when there is no input signal. They also feature auto polarity which visually clues the user to a negative reading.

The Modutec 1000 features a 0.3-inch digit display in red or green for hard-to-read applications. Choose from bezel or window mount snap-on bezel – neither of which need extra hardware or panel holes. At 1.34″ x 0.75″ and panel depth less than 0.8″ these meters are easy to read, small units that fit into almost any application.



Compare
Categories: , Tags: , , , , , ,
Additional information
Weight 1 oz
Dimensions .70 × 1.34 × 1.245 in
Features

• DC power options
• Process and DC inputs with offset and span adjustments
• Low power usage allowing battery operation even with backlighting
• Wide operating temperature range -30° to 80°C (optional)
Applications

• DC Amps
• DC Volts
• Telecommunications
• Water Purification
• Sewage Treatment
• Flow
• Process
• Desalinization

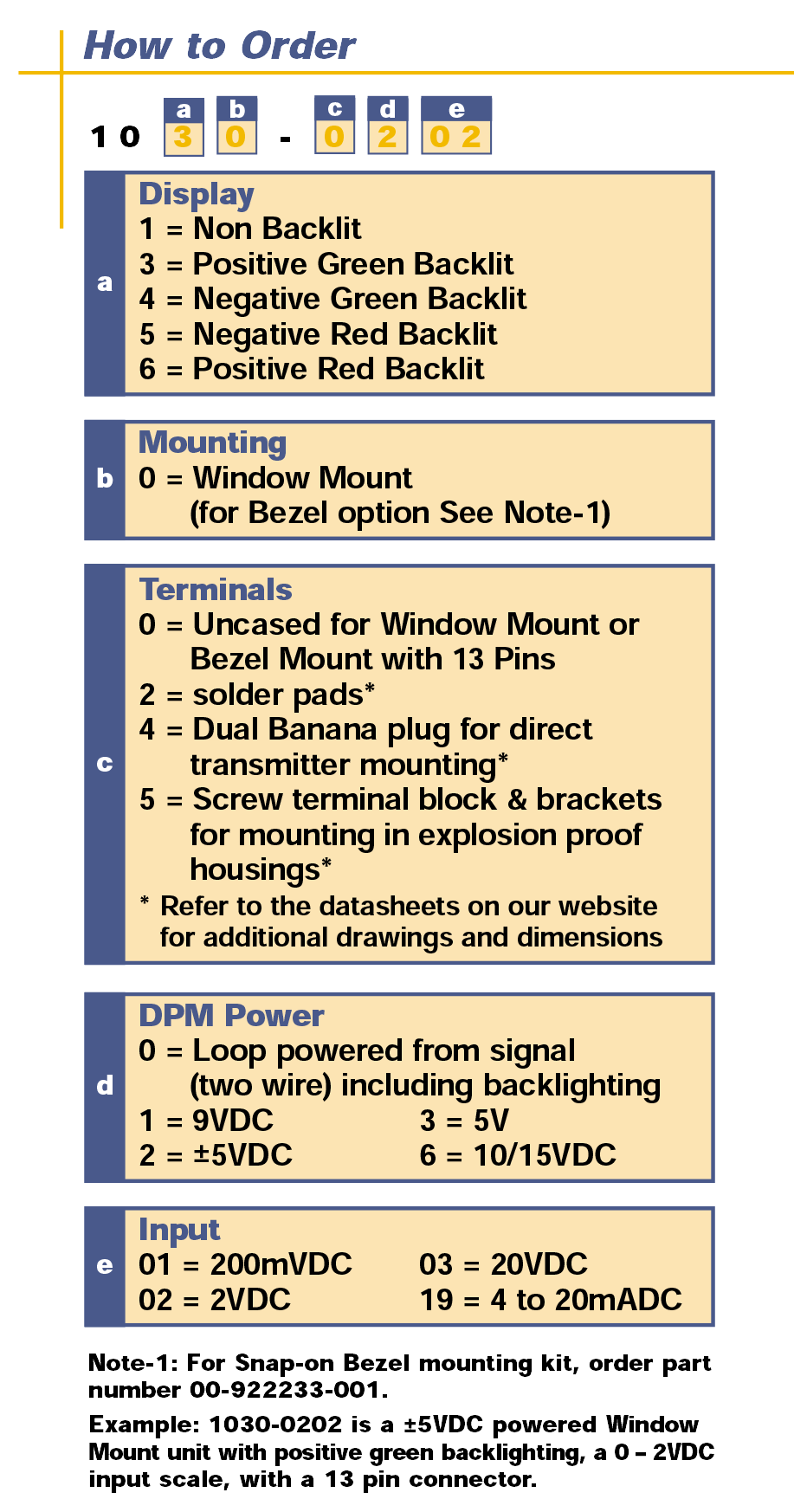

How to Order
