Modutec 2000 Series Digital Panel Meters
Modutec 2000 Series Digital Panel Meters

Modutec 2000 Series Digital Panel Meters

Highlights:

You need flexibility. We provide it. We customize our meters to meet your specifications.

Compare
Categories: , Tags: , , , , , ,
Additional information
Weight 2 oz
Dimensions .99 × 3.78 × 1.89 in
Features

• Scalable in engineering units
• Custom labels for special readouts
• User Selectable functions, decimal point, offset, span, process voltage or current, DC voltage
• Red or green backlit display
• Splash and hose proof meeting NEMA 4, NEMA 12, and IPC 55 standards
• Resistant to damage with a high impact polycarbonate case
• Wide operating temperature ranging from -4°F to +140°F (-20°C to +60°C)
• 1/8 DIN industry-standard cut-out and 1-inch depth
• Screw terminals
• Over range indication
• Low cost
• The MODUTEC 2100 includes user-friendly dipswitch selection features
Applications

• Telecommunications
• Water Purification
• Sewage Treatment
• Flow
• Process
• Desalinization
• Temperature
• AC & DC Amps
• AC & DC Volts
FCC Compliance

Complies with the class B Limits of FCC rules and regulations, part 15, sub part J for conducted and radiated emissions.

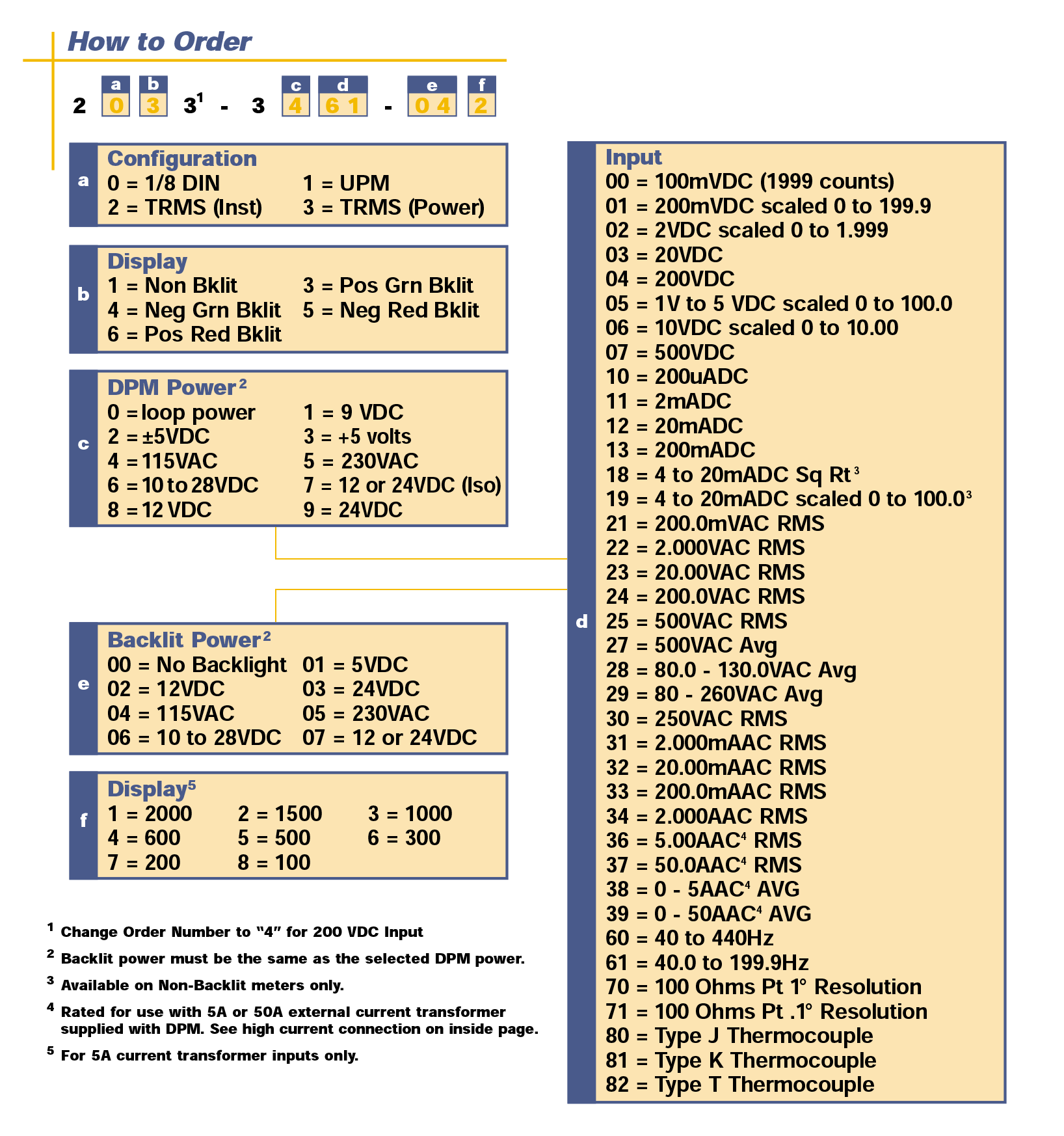

How to Order
