MODUTEC BL Digital panel meter
MODUTEC BL Digital panel meter

Modutec BL Series

Highlights:

The MODUTEC BL Digital panel meter gives you all the functionality you need with none of the extras you don’t need. That means simplicity, easy readability, a small footprint, and a low cost.





Compare
Categories: , Tags: , , , , , , , , , ,
Additional information
Weight 2 oz
Dimensions .99 × 3.78 × 1.89 in
Features

• Ultra-compact form factor
• Value priced
• 3.5 digit readout, full scale 1999 display
• ½" tall digits on a high-contrast LCD
• Auto-polarity (-) displayed
• 13 pin connection, solder pad connections, or terminal block options available
• Easy to install bezel mount
• User-selectable decimal points
• Choose from a variety of input and power options
Applications

• Telecommunications
• Water Purification
• Sewage Treatment
• Flow
• Process
• Desalinization
• Temperature
• AC & DC Amps
• AC & DC Volts
• Line Frequency Monitor
• RTD & Thermocouple Temperature Inputs (Isolated only)

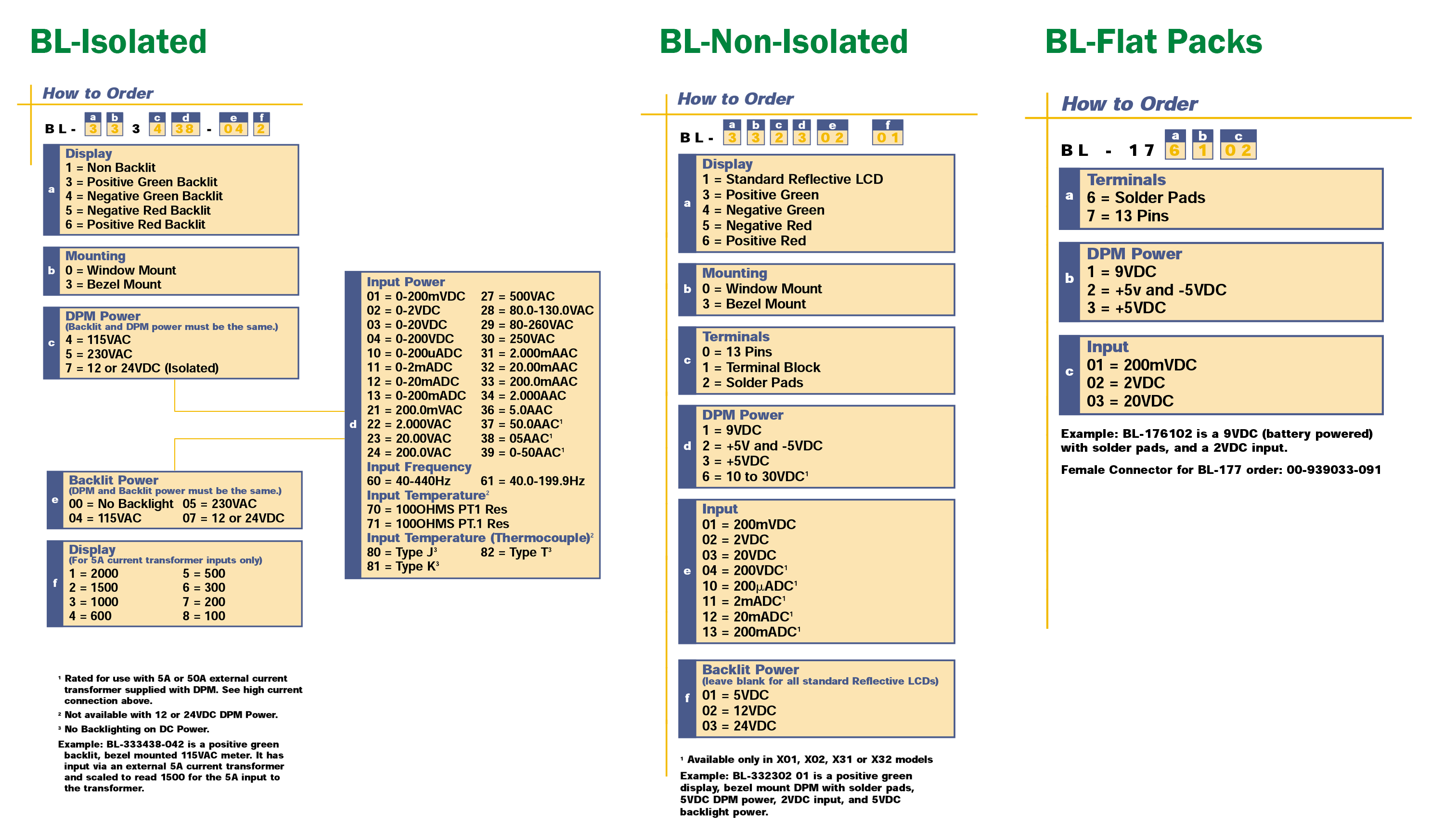

How to Order
